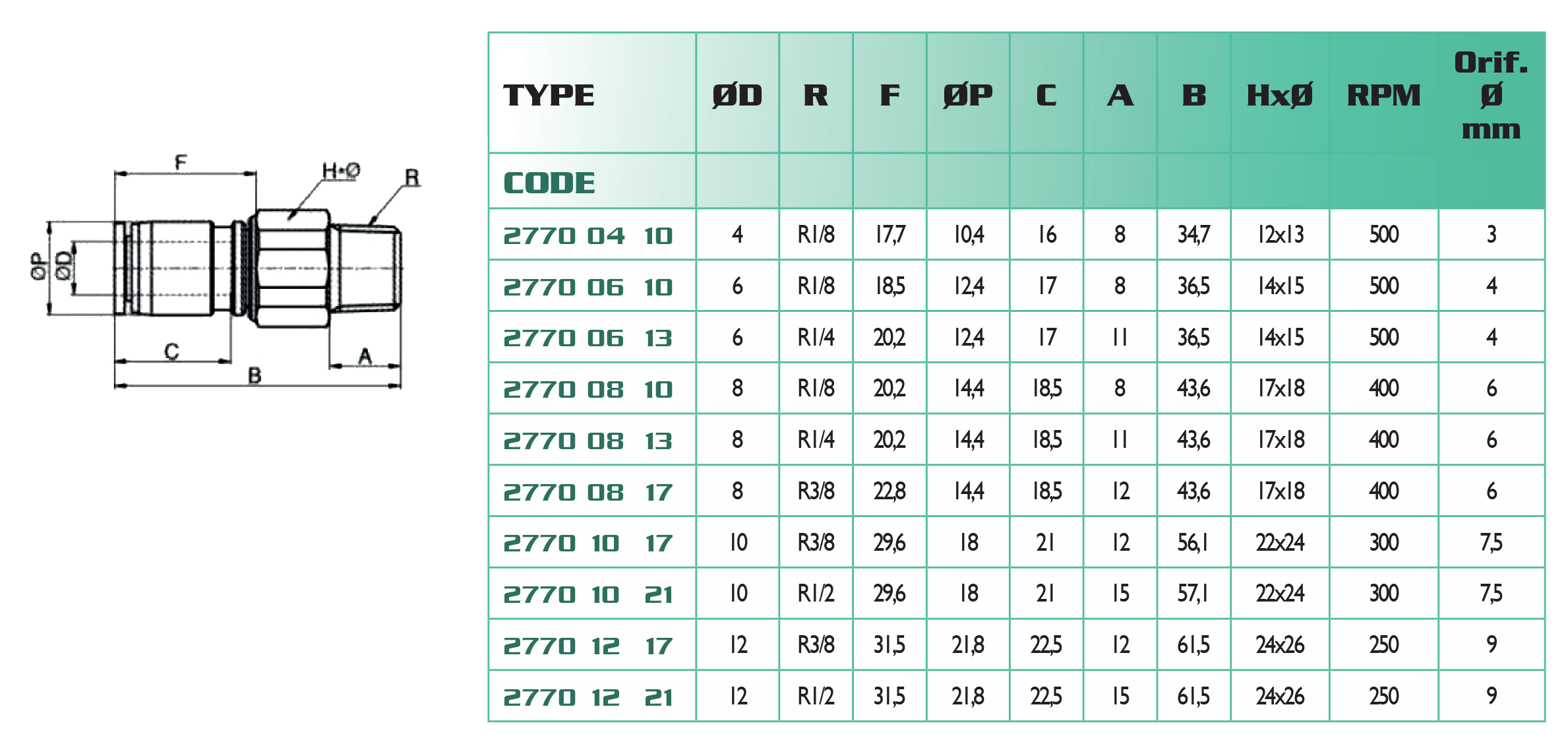

Our rotary joints are used for supplying compressed air at swiveling connections. They are suited for index tables, rotary plates and industrial robots. Built with bearings, they are suitable for high-speed swiveling pneumatic connections. Radial load on the tube, and strenghth on
the ball bearings, can shorten the life of your rotary joint. - Technical features
- working pressure : 0÷9 Bar
- negative pressure : -750 mm Hg
- working temperature : 0° ÷ +60°C
- applicable tube material : Polyamide, Polyurethane.
