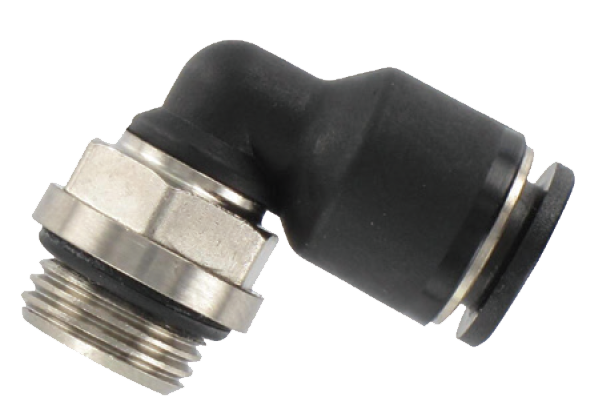

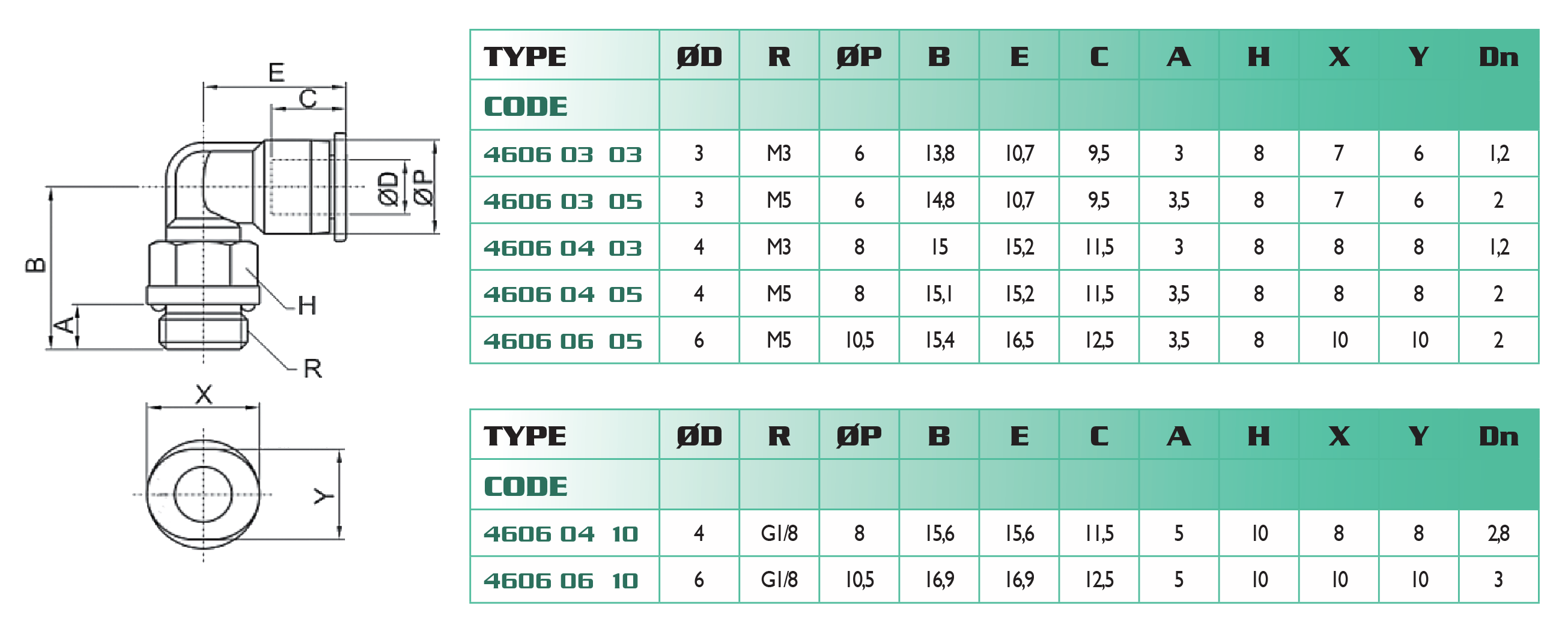

4606

  • Areas of application : compressed air, vacuum
    Series 4600 miniature fittings are for use with small outside diameter tubes. A wide range of models is available to meet any technical requirements.
  • Technical features
    - working pressure : 0÷150 PSI / 0÷10 Bar
    - negative pressure : -750 mm Hg
    - working temperature : 32÷140 °F; 0°C ÷ +60 °C
    - applicable tube material: Polyamide, Polyurethane
    - The miniature series features a 40% smaller volume compared with
    conventional type of resin fittings.
    - The elliptical release ring for ø 3 allows easy disassembly of the tube in confined space.
